Lab 5 examining flip flops and latches

For this lab it is crucial that you put your flip-flop in a known state.

Part 1. – D Latches and Flip-flops

  1. Build the D-Flip-flop shown below. Notice there is a reset input on this flip-flop.
  2. Create a part for your D-Flip-Flop.
  3. It is to your benefit to test your flip-flop before continuing. The results of this simulation will not be graded, but if your part doesn’t work properly the rest of the lab won’t work properly either.
Lab 5 examining flip flops and latches Image 1

Part 2. T and JK from D

  1. Build a T and a JK flip-flop from your D-Flip-flop each in its own schematic folder and on its own page.
  2. Create parts for each and test appropriately.

Part 3 T and D from JK

  1. Using part 74107, build a T and a D-flip. Do NOT put both designs on the same schematic page.
  2. Create parts for each and test appropriately.

Part 4. Mystery Circuit

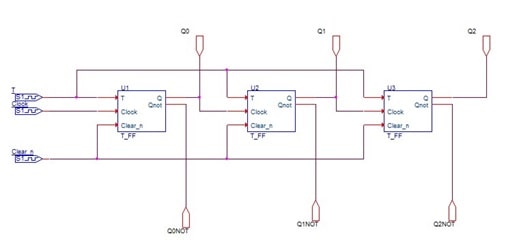

  1. Given the following design.
    1. Create a state table
    2. Create a state diagram
    Lab 5 examining flip flops and latches Image 2
  1. Build the circuit, using your T flip flop from Part 3.
  2. Simulate the design.
  3. Create a part and name it appropriately
  4. Simulate your part.

Part 5. Deliverables. – UPLOADED TO CANVAS

  1. Pdf’s of your designs (not the part), simulation results and your .stl file(s)
