Insertion Of PI Controller In The Simulink Model

A PI controller is added in cascaded with the lead controller . The overall system is shown. Transient response of the lead controller is the same but the settling time is improved.

Insertion Of PI Controller In The Simulink Mode Assignment

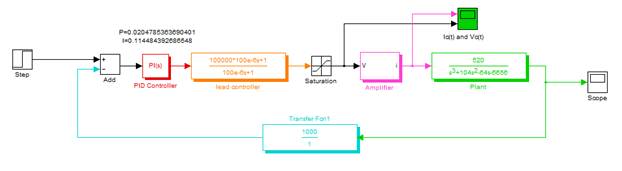

Figure : Simulink block diagram with PI controller

Programming Assignment Help

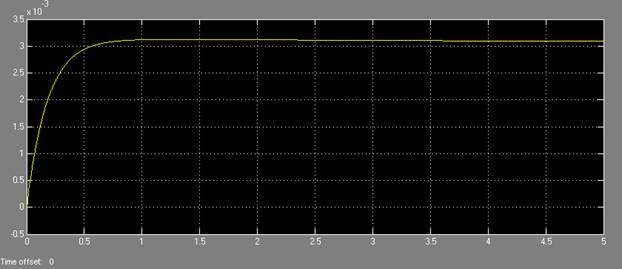

Figure : System Response with PI controller

MATLAB Programming Help

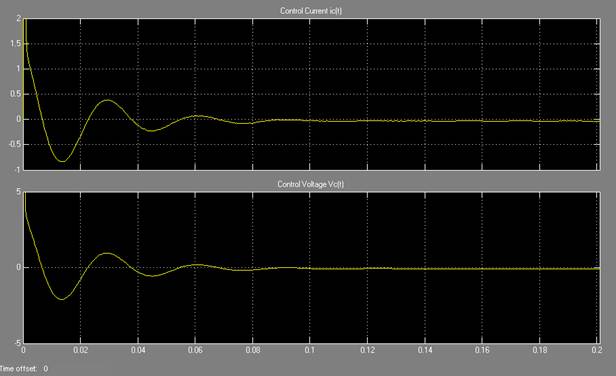

Figure: ic(t) and vc(t)
