Complete Simulink Model With The Insertion Of Smoothing Pre-Filter

Now a smoothing pre-filter is added and a complete block diagram in Simulink is created. The overall system response is shown as

Complete Simulink Model

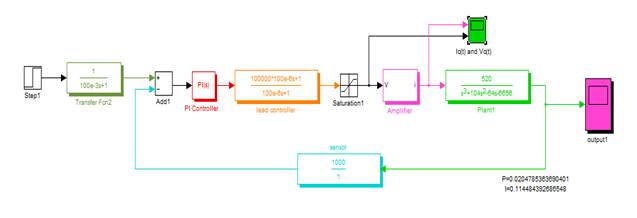

Figure 1: Overall Simulink Model along with pre-filter

Simulink Model Assignment Help

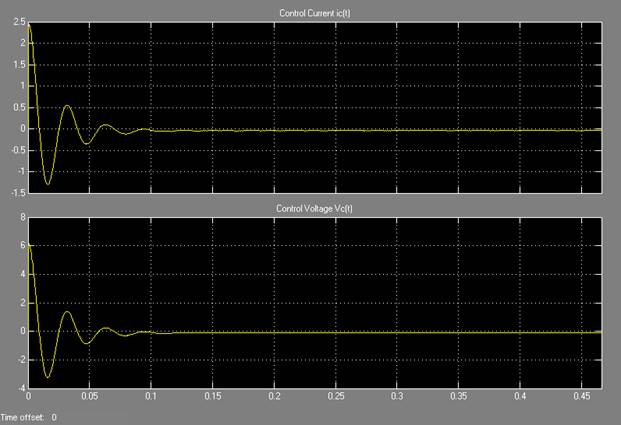

Figure 2: Vc(t) and ic(t) for overall block diagram

MATLAB Assignment Help

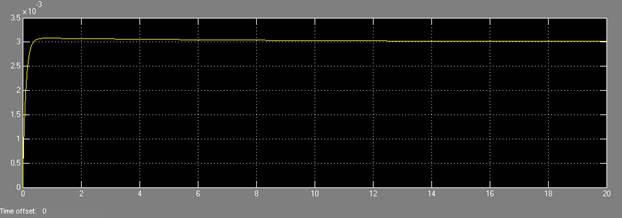

Figure 3: System Response of Overall System

Improving steady state response using Integral gain:

MATLAB Homework Help

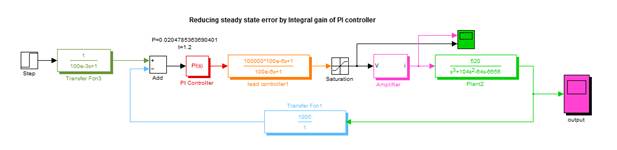

Figure 4: Overall Simulink Model along with prefilter



MATLAB Programming Help

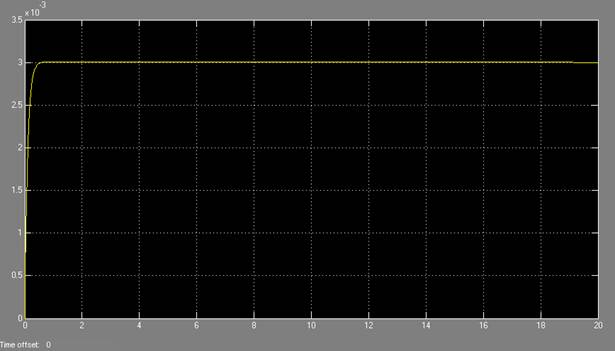

Figure 5: System Response of Overall System with Integral gain improvement
